Sale!

Enerpac 10′, Heavy-duty Rubber High Pressure Hydraulic Hose HC9210

Original price was: $265.00.Current price is: $134.99.

SKU: SKUQUydXiI3H4 Categories: Accessories, Hydraulic Components & Fittings Tag: Enerpac Brand: Enerpac

Description
Reviews (0)

Additional Details

Enerpac

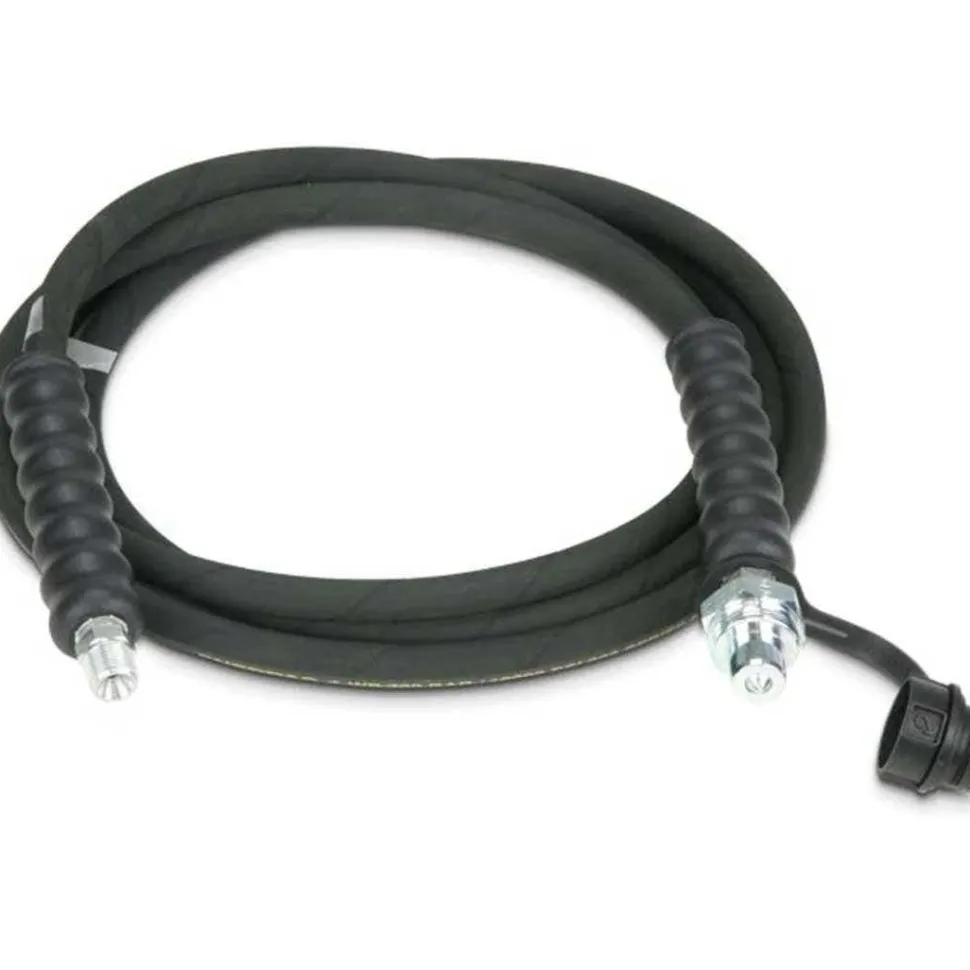

10 ft., Heavy-duty Rubber High Pressure Hydraulic Hose HC9210

Enerpac H900-Series high-pressure hydraulic hoses are heavy-duty, rated for 10,000 psi (700 bar) and rubber coated. They provide the optimum combination of flexibility and low “memory” needed for long hose runs.

FEATURES:

Crimped-on rubber strain relief for improved life and durability
Maximum working pressure of 10,000 psi
Rubber coated with two layers of steel wire braids
Designed to comply with Material Handling Institute IJ-100 hose specification

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10,000
Oil Capacity (in3)	5.89
Internal Diameter (in)	0.25

INCLUDES:

(1) Hydraulic Hose

Manufacturer Specifications

Shipping Weight	4.3 lbs
Hose Oil Capacity	When using greater hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for 6,4 mm inside diameter hoses: Capacity (cm3) = 32,1699 x Length (m) cmÂ³ \| When using long hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for .25″ internal diameter hoses: Capacity (in3) = .5892 x Length (ft) inÂ³
internal Diameter	6,4 mm \| 0.25 in
Length	10 ft
Type	Hose
End Two Coupler	CH604
News Feed Product Group	Hoses, Pumps
Oil Capacity	5.89 inÂ³
Product Line	Industrial Tools
End One Coupler	3/8″ NPTF
Country of Origin	United States
Sub Types	Heavy-duty Rubber Hose
