Enerpac 10′ Thermo-Plastic High Pressure Hydraulic Hose HC7210

Enerpac

10′ Thermo-Plastic High Pressure Hydraulic Hose HC7210

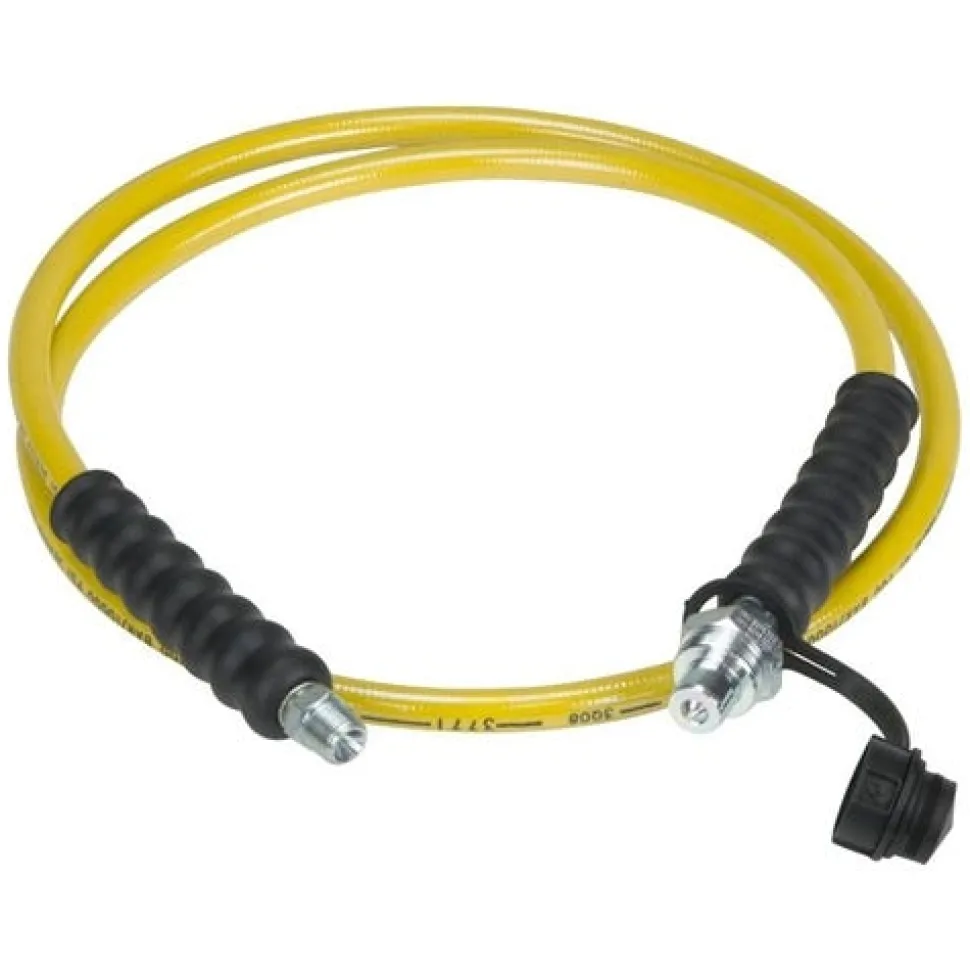

This Enerpac HC7210 hydraulic hose is for use with high-pressure applications such as hydraulic jacks and has a maximum working pressure of 10;000 (pounds per square inch) psi. It is 10′ in length; with a polyurethane outer jacket for resistance to abrasion and two layers of steel wire braids for strength and resistance to expansion.

FEATURES:

• Crimped-on rubber strain relief for improved life and durability on all models.
• For demanding applications; featuring a 4:1 design factor.
• Maximum working pressure of 10;000 psi.
• Two layers of steel wire braids.
• Outside jacket is polyurethane; to provide maximum abrasion resistance.
• Exhibits low volumetric expansion under pressure to enhance overall system efficiency.

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10;000
Internal Diameter (in)	0.25
End One Coupler	3/8 NPTF
End Two Coupler	CH604
Oil Capacity (in3)	5.89
Hose Oil Capacity (in3)	When using long hose lengths; it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity; use the following for .25″ internal diameter hoses: Capacity (in3) = .5892 x Length (ft)
Length	10

“
