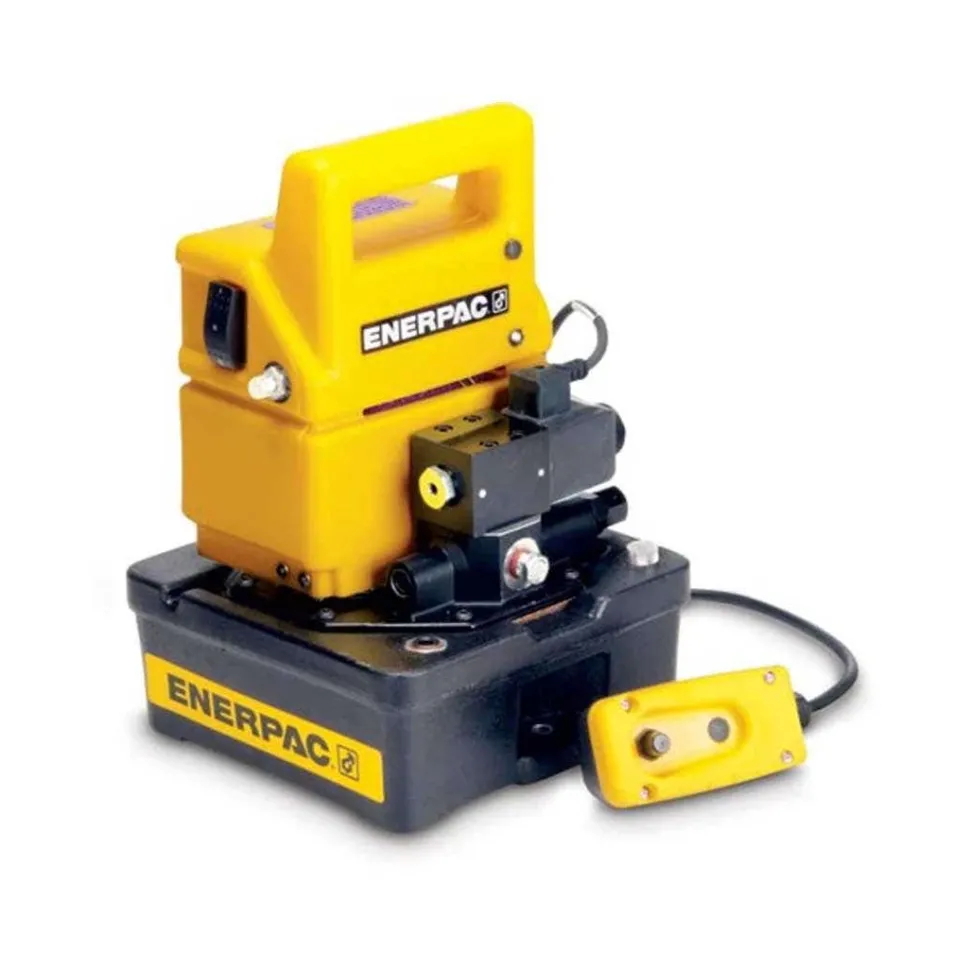

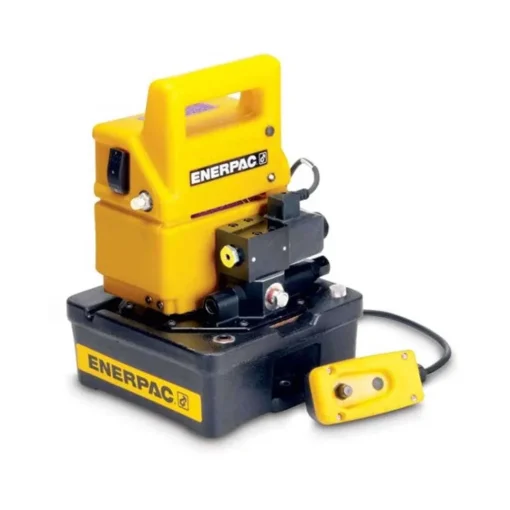

Enerpac Economy Electric Dump Valve Hydraulic Two Speed Pump PUD1100B

Name: Enerpac Economy Electric Dump Valve Hydraulic Two Speed Pump PUD1100B
Brand: Enerpac
SKU: SKUiqE9r14hyz
Availability: InStock

Original price was: $4,536.00.Current price is: $130.89.

SKU: SKUiqE9r14hyz Categories: Accessories, Hydraulic Components & Fittings Tag: Enerpac Brand: Enerpac

Additional Details

Enerpac

Economy Electric Dump Valve Hydraulic Two Speed Pump PUD1100B

FEATURES:

The Economy pump is best suited to power small to medium size cylinders or hydraulic tools. Its lightweight and compact design makes it ideal for applications which require easy transport of the pump.
The Universal motor works well on long extension cords or generator driven electrical power supplies.
Provides advance/auto-retract of single-acting cylinders
Ideal for punching applications

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10,000
Cylinder Compatability	Single-acting
Maximum Flow at Rated Pressure	20 in3/min
Motor Voltage	115 V

INCLUDES:

(1) Hydraulic Pump

Manufacturer Specifications

Dimension F	8 In \| 203 Mm
Sound Leveld Ba	85
Type	Hydraulic Pump
Current Draw Amps	9.5
Maximum Operating Pressure Ranges Bar	700
Usable Oil Capacity	1,9 Litres
Cylinder Compatability	Single-acting
Motor Voltage	115 V
Shipping Weight	32.52 lbs
Output Flow Rate 1st Stage	200 inÂ³/min \| 3,31 L/min
Maximum Flowat Rated Pressure	20 in3/min
Dimension A	9.62 In \| 244 Mm
Pump Operation	Dump
Pressure Rating2nd Stage bar	700
Maximum Operating Pressure Ranges Psi	10000
Output Flow Rate 2nd Stage	20 inÂ³/min \| 0,32 L/min
Motor Electrical Specification	115 V, 50/60 Hz
Pump Control	Pendant
Maximum Flow Rate Rangesat Rated Pressure	0 – 20 inÂ³/min \| 0 – 0,34 L/min
Dimension J	5.25 In \| 133 Mm
Dimension E	4.72 In \| 119 Mm
Maximum Flow At Rated Pressure liter	0.32
Maximum Flow At Rated Pressure	20 inÂ³
Reservoir Capacity	1900 cmÂ³ \| 116 inÂ³
Pressure Rating1st Stage Psi	200
Pump Power Source	Electric
Maximum Flow At Rated Pressure metric	0,32 l/min
Weight	26 lbs \| 11,8 kgs
News Feed Product Group	Pumps
Pressure Rating1st Stage bar	13
Pressure Rating2nd Stage Psi	10000
Dimension B	9.62 In \| 244 Mm
Valve Function	Advance / Retract
Motor Size	0.5 HP
Dimension C	14.25 In \| 362 Mm
Usable Oilcapacity	0.5 Gal
Dimension H	0.4 In
Duty Cycle	Intermittent
Upsell item	XC1302SB
Sub Types	Electric Pump – Economy
Product Line	Industrial Tools
Maximum Flow At Rated Pressure imperial	20 in3/min
Country of Origin	United States
Dimension D	4 In \| 101 Mm
