Enerpac High Flow Hydraulic Coupler, Female Half CR400

Name: Enerpac High Flow Hydraulic Coupler, Female Half CR400
Brand: Enerpac
SKU: SKUzEV8zymtqk
Availability: InStock

$50.99

SKU: SKUzEV8zymtqk Categories: Accessories, Hydraulic Components & Fittings Tag: Enerpac Brand: Enerpac

Additional Details

Enerpac

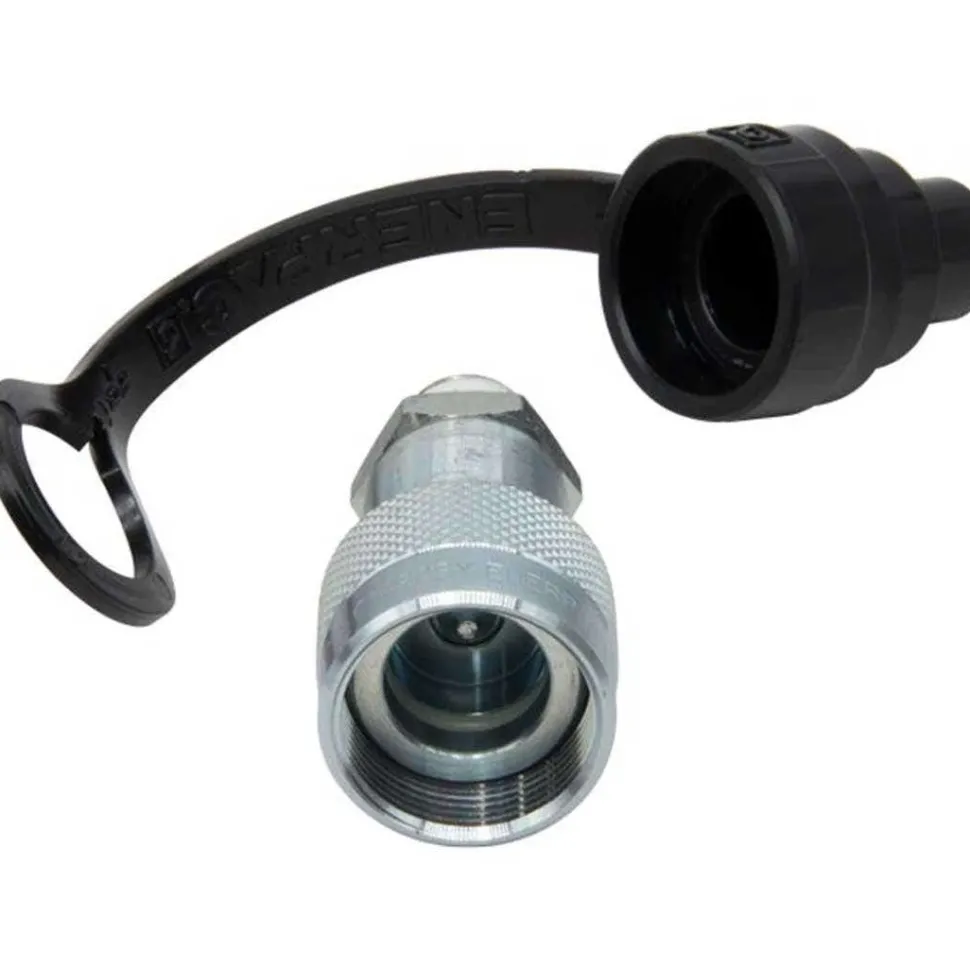

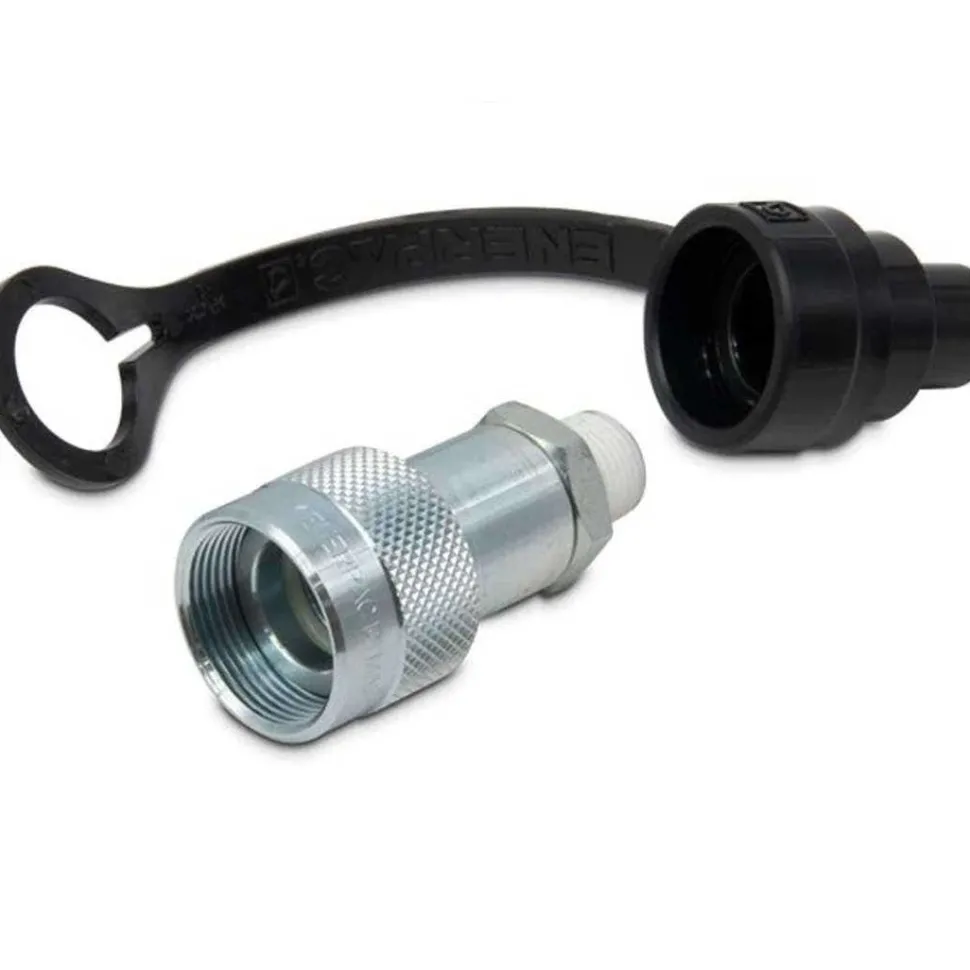

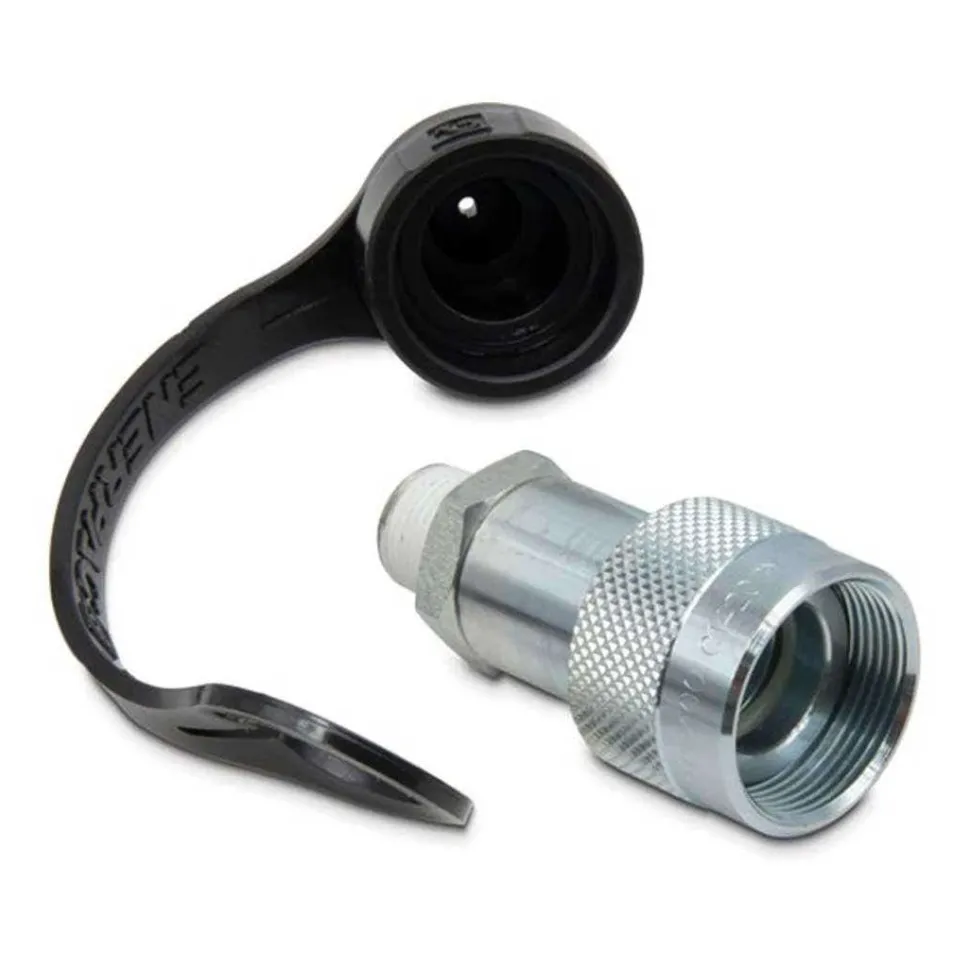

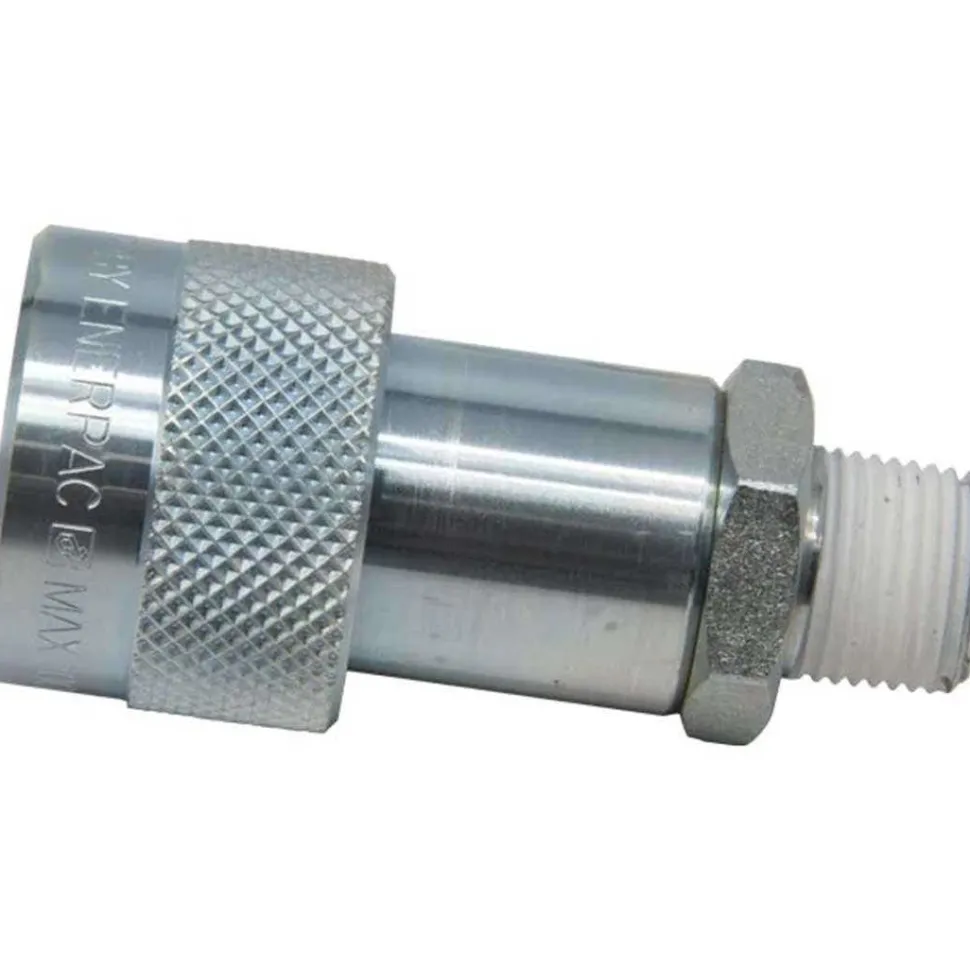

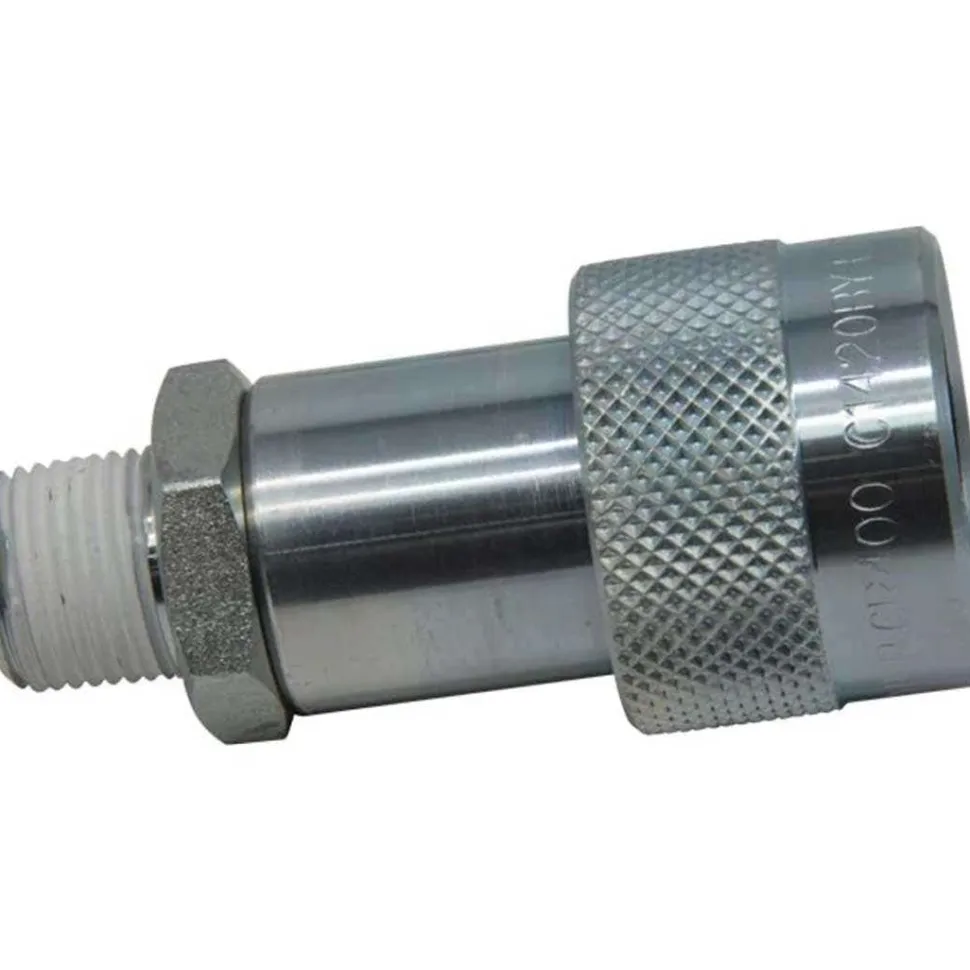

High Flow Hydraulic Coupler, Female Half CR400

C-Series 3/8” High Flow Hydraulic Couplers make quick connections to hydraulic lines with a flow up to 2,100 in3/min (35 liters) per minute.

FEATURES:

3/8″ High Flow Couplers
Standard equipment on most Enerpac cylinders
Reccomended for use on all Enerpac pumps and cylinders where space and porting permits
Include “2-in-1” dust cap for use on male and female coupler halves

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10,000
Maximum Flow Capacity (in3/min)	2500
Anatomy	Male Half

INCLUDES:

(1) Hydraulic Coupler Female Half

Manufacturer Specifications

Dimension A	3.26 In \| 83 Mm
Dimension F	1.25 In \| 32 Mm
Dimension C	3/8 NPTF In \| 3/8 nptf Mm
Maximum Flow Capacity	2500 inÂ³/min \| 35 L/min
Product Line	Industrial Tools, Workholding Tools, Bolting Tools
Dimension D	1.38 In \| 35 Mm
Shipping Weight	0.53 lbs
Dimension E	1.38 In \| 36 Mm
Sub Types	High Flow Coupler
News Feed Product Group	Couplers
Type	Coupler
Dimension B	2.87 In \| 64 Mm
Dimension G	1 In \| 25 Mm
Maximum Operating Pressure	10000
Country of Origin	China
