Diablo

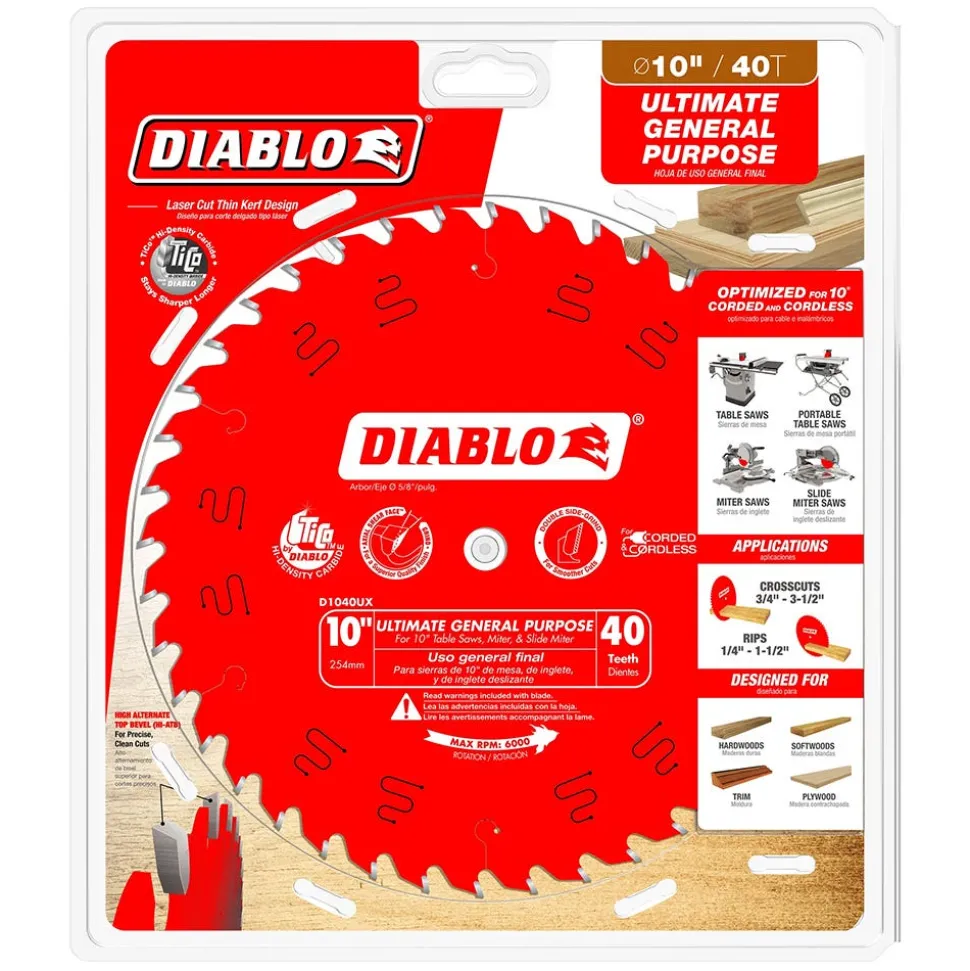

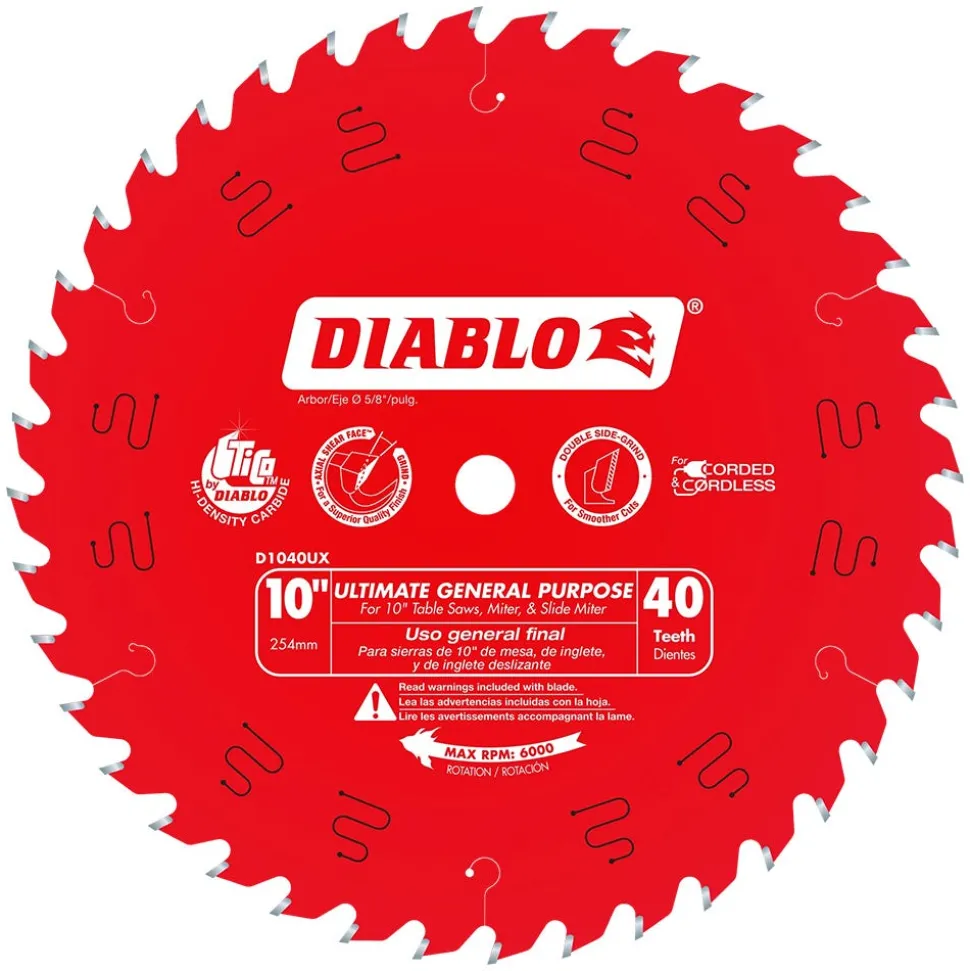

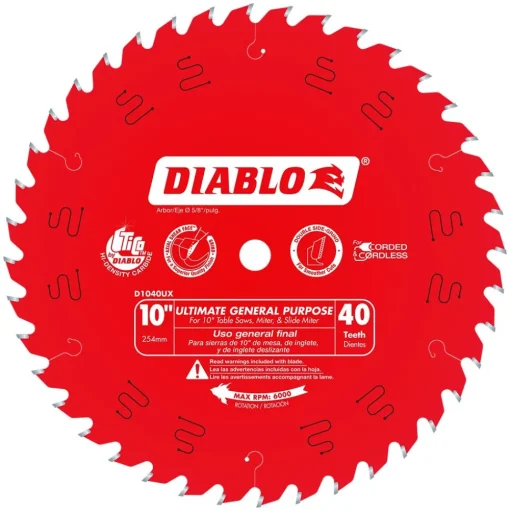

10 in. x 40 Tooth Ultimate General Purpose Saw Blade D1040UX
Diablo’s Ultimate General Purpose saw blade is the industry’s most innovative blade for cross-cutting and ripping hardwood and softwood trim and finishes. This technology rich blade includes the ultimate trifecta for creating superior quality cuts that virtually eliminates rework: Hi-ATB tooth geometry for precision, Axial Shear Face Grind for effortless, clean cuts and lastly, a Double Side Grind tooth design for a “polished-like” effect. Diablo made TiCo Hi-Density Carbide is designed specifically to deliver extreme durability and maximum life. This Ultimate General Purpose saw blade has a laser-cut, super thin kerf blade design for fast, effortless cuts on corded and cordless saws making this the go-to blade when working at a permanent location or at a portable jobsite. Use this blade for rip cuts requiring an ultra-smooth finish or make superior crosscuts in solid wood or plywood. Great for both sliding and “chop” style table and miter saws.

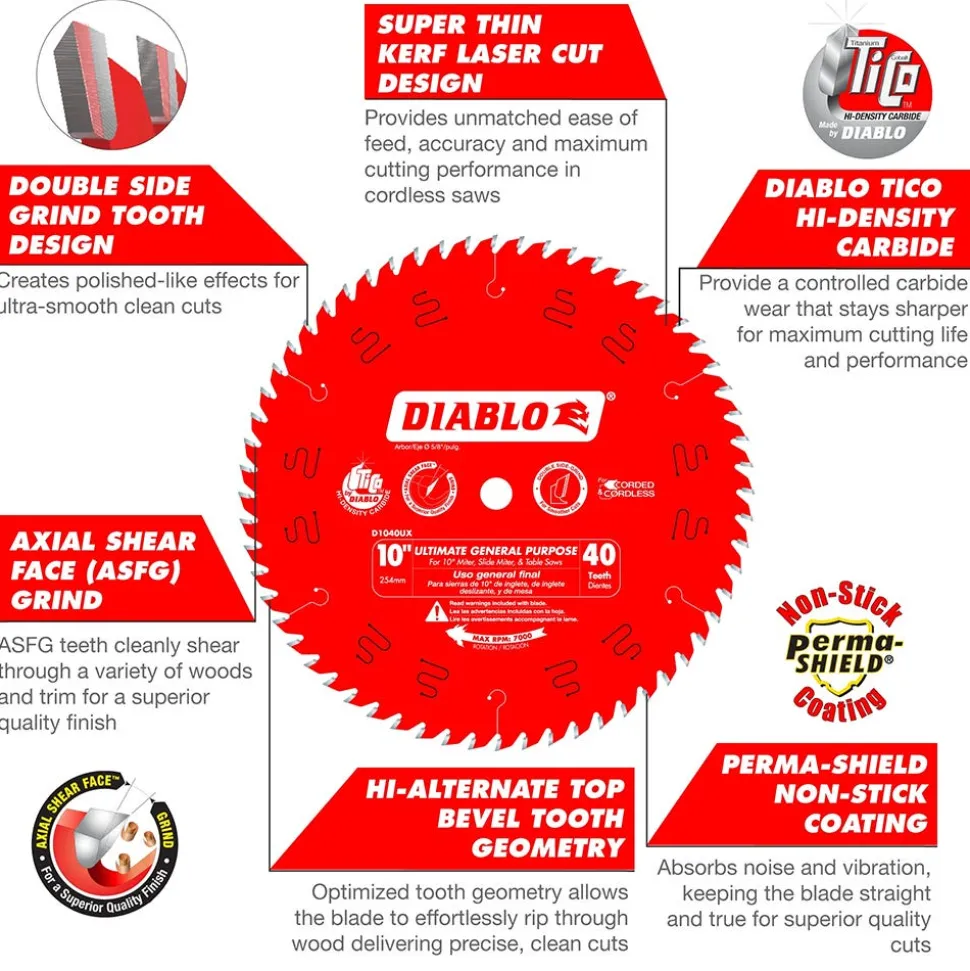

FEATURES:
- Diablo made TiCo™ Hi-Density carbide for maximum cutting life and performance
- Hi-Alternate Top Bevel (ATB) tooth geometry includes an ultra-precise 30-degree (30°) bevel, which allows the alternating teeth to effortlessly rip through wood,
- delivering precise, clean cuts with virtually no tear-out
- Axial Shear-Face Grind (ASFG) design cleanly shears through material for a superior quality finish
- Double Side Grind tooth design creates a polished-like effect for ultra-smooth, clean cuts
- Super thin, laser cut kerf design provides unmatched ease of feed, accuracy and maximum performance in cordless saws
- Extreme cutting efficiency in corded and cordless saws by offering more cuts per battery charge versus standard blades
- Tri-metal shock resistant brazing allows carbide tips to withstand extreme impact for maximum durability
- Advanced stabilizer vents provide the ideal combination of stability and rigidity for precise, clean cuts
- Perma-SHIELD® non-stick coating protects the blade against heat, gumming and corrosion
- Laser cut arbor reduces vibration and premature wear for accurate blade rotation when in use
- Max RPM: 7000
SPECIFICATIONS:
| ARBOR | 5/8″ |
| DIAMETER | 10″ |
| HOOK ANGLE | 18° |
| KERF | 0.095″ |
| PLATE | 0.071″ |
| TEETH | 40 Hi-ATB |
| MAX RPM | 7000 |
| OPT SKU | FRD1040UX |
|---|---|
| MPN | D1040UX |
| UPC/GTIN | 008925164371 |
| Product Type | Wood, Trex, Laminate & Hardie |
| Google Category | Hardware > Tool Accessories > Tool Blades > Saw Blades |
| Diameter | 10″ |
| Shipping Weight | 3.00 |
