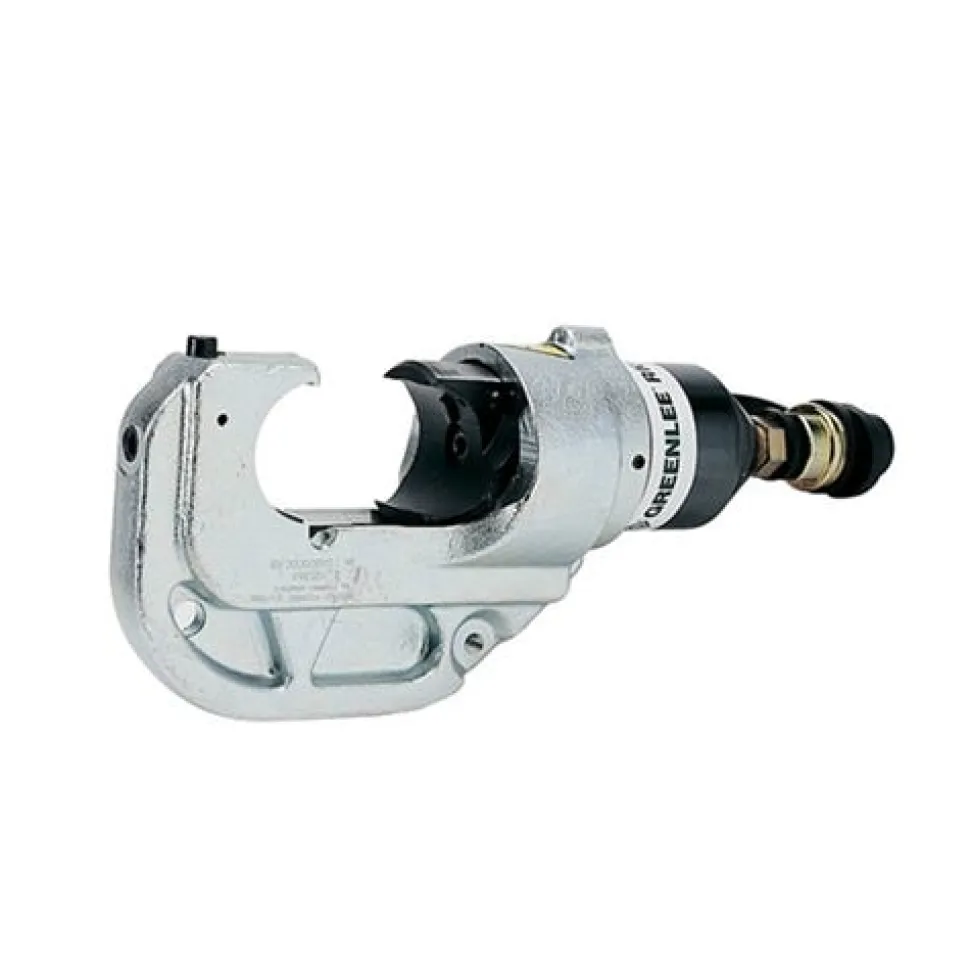

Greenlee 12 Ton Hydraulic Remote Powered Crimping Head 1.65 Opening RK1240

• Greenlee
• 12 Ton Remote Powered Crimping Head 1.65 Opening RK1240
• Use Greenlee KC12; KA12 and KD12 crimping dies as well as industry U type dies
• Crimping head has 1.65″ (42 mm) opening
• New head designs result inlower weight and improved durability – tested to 50;000 crimp cycles
• Boss included on each crimping head for use with hotsticks
• Easy to get into tight locations; light weight makes them excellent choices for hotstick use
• Single-acting tools require an external hydraulic pump capable of 10;000 psi (700 bar)
• Equipped with a 3/8″ male screw-type coupler
• Capable of crimping a widerange of lugs; C-taps; H-tapsand overhead tension sleeves
• Covered head models have two layers of PVC that total approximately 3/16 IN (4.8 mm) thick. The outer layer is black and the inner layer is red
• Includes carrying case
• Capacity : 8 AWG – 750 KCMIL Color-Coded Copper Lugs And Splices
• Crimping Force : 24000.000 LB (106.000 KN)
• Includes : Carrying Case
• Jaw Opening : 1.650 IN (42.000 MM)
• Length : 11-7/8 IN (302.000 MM)
• Operating Pressure : 10000 PSI (700 BAR)
• Standard : C/US UL Listed
• Tool Coupler : 3/8 IN Male Screw Coupler
• Type : Remote Powered
• Weight : 9.700 LB (4.400 KG)

“
