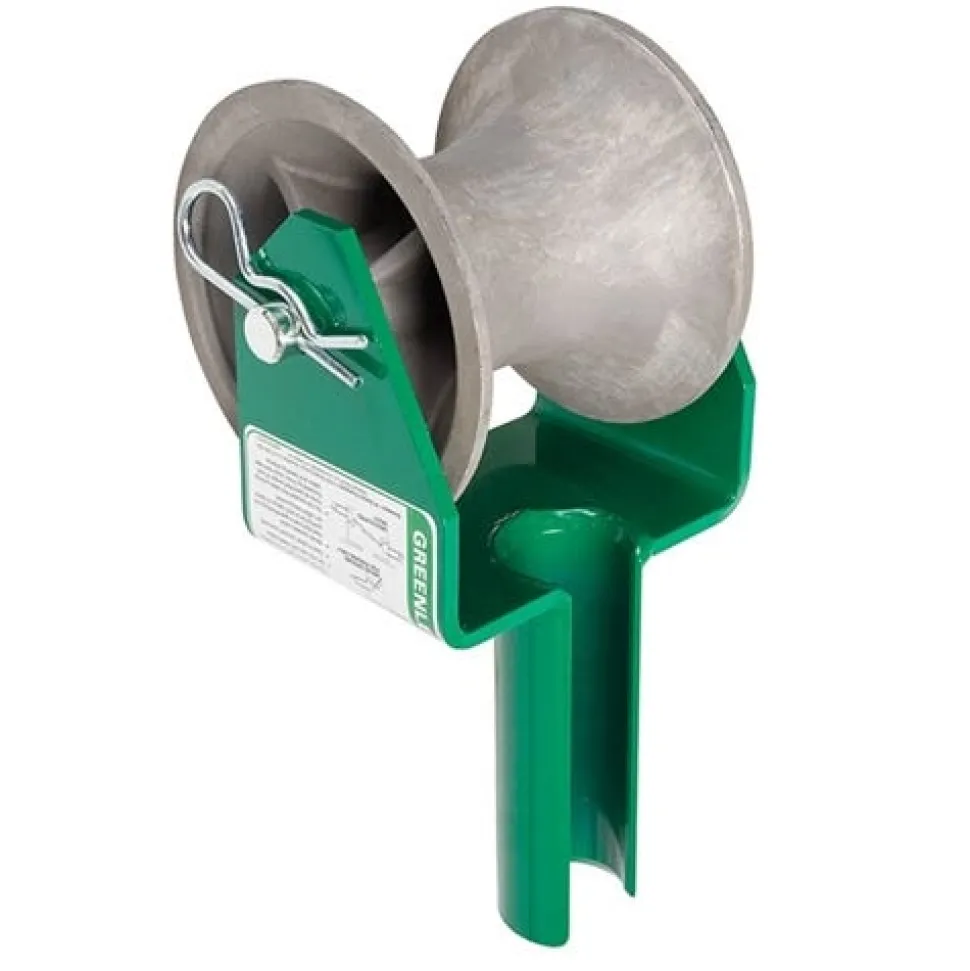

Greenlee Feeding Sheave 2″ Conduit 441-2

Name: Greenlee Feeding Sheave 2" Conduit 441-2
Brand: Greenlee
SKU: SKU0u15PY0wXz
Availability: InStock

Original price was: $435.00.Current price is: $140.99.

SKU: SKU0u15PY0wXz Categories: Accessories, Cable Pulling Sheaves & Rollers Tag: Greenlee Brand: Greenlee

Additional Details

Greenlee
Feeding Sheave for 2 Conduit 441-2
Yoke frame slides into the end of conduit and holds sheave; allowing the cable being fed into the conduit to smoothly roll over the sheave
5.000 IN (127.000 MM) wide aluminum alloy sheave with self-Lubricating bearings
Split tube for easy removal after cable is installed
Capacity : 1750.000 LB (7.700 KN) At 15 DEG; 900.000 LB (4.000 KN) At 30 DEG; 650.000 LB (2.800 KN) At 45 DEG; 500.000 LB (2.200 KN) At 60 DEG; 450.000 LB (2.000 KN) At 75 DEG; 450.000 LB (2.000 KN) At 90 DEG
Includes : 25160 UPC 25160 Sheave Pin; 50302 UPC 50302 Sheave Pin Clip(2); 15362 UPC 15362 Sheave
Weight : 9.000 LB (4.500 KG)

“

Manufacturer Specifications

Material	Feeding Sheave for 2″ conduit
Standard	Feeding Sheave for 2″ conduit
Included Components	25160 UPC 25160 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15362 UPC 15362 Sheave
Outside Diameter	6.00″
Capacity	1750.000 LB (7.700 KN) At 15 DEG, 900.000 LB (4.000 KN) At 30 DEG, 650.000 LB (2.800 KN) At 45 DEG, 500.000 LB (2.200 KN) At 60 DEG, 450.000 LB (2.000 KN) At 75 DEG, 450.000 LB (2.000 KN) At 90 DEG
Keyway	None
Type	Sheave Assembly
Includes	25160 UPC 25160 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15362 UPC 15362 Sheave
Country of Origin	United States
Pitch Diameter	Between 3.00″ and 6.00″
