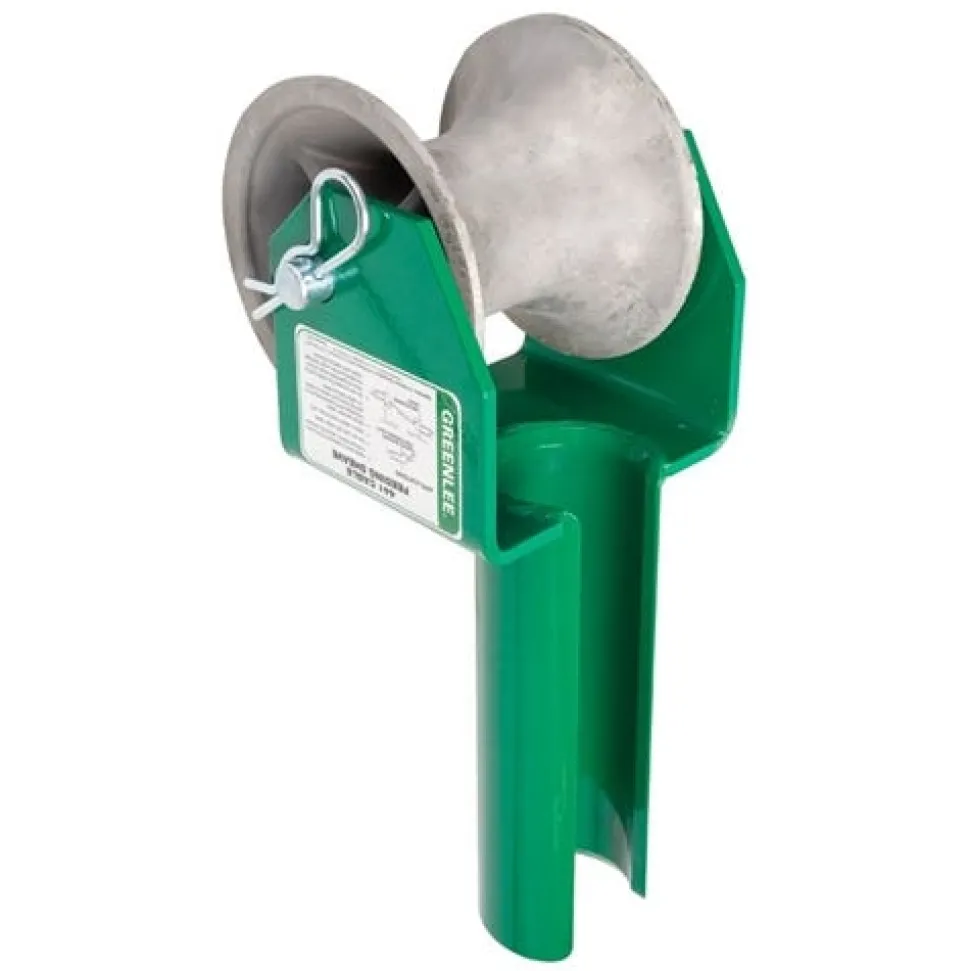

Greenlee Feeding Sheave 3-1/2″ Conduit 441-3-1/2

• Greenlee
• Feeding Sheave for 3-1/2 Conduit 441-3-1/2
• Yoke frame slides into the end of conduit and holds sheave; allowing the cable being fed into the conduit to smoothly roll over the sheave
• 5.000 IN (127.000 MM) wide aluminum alloy sheave with self-Lubricating bearings
• Split tube for easy removal after cable is installed
• Capacity : 6500.000 LB (28.900 KN) At 15DEG; 5050.000 LB (22.400 KN) At 30 DEG; 3550.000 LB (15.700KN) At 45 DEG; 2900.000 LB (12.800 KN) At 60 DEG; 2600.000 LB (11.500 KN) At 75 DEG; 2500.000 LB (11.100 KN) At 90 DEG
• Includes : 25160 UPC 25160 Sheave Pin; 50302 UPC 50302 Sheave Pin Clip(2); 15362 UPC 15362 Sheave
• Weight : 17.000 LB (7.700 KG)

“
