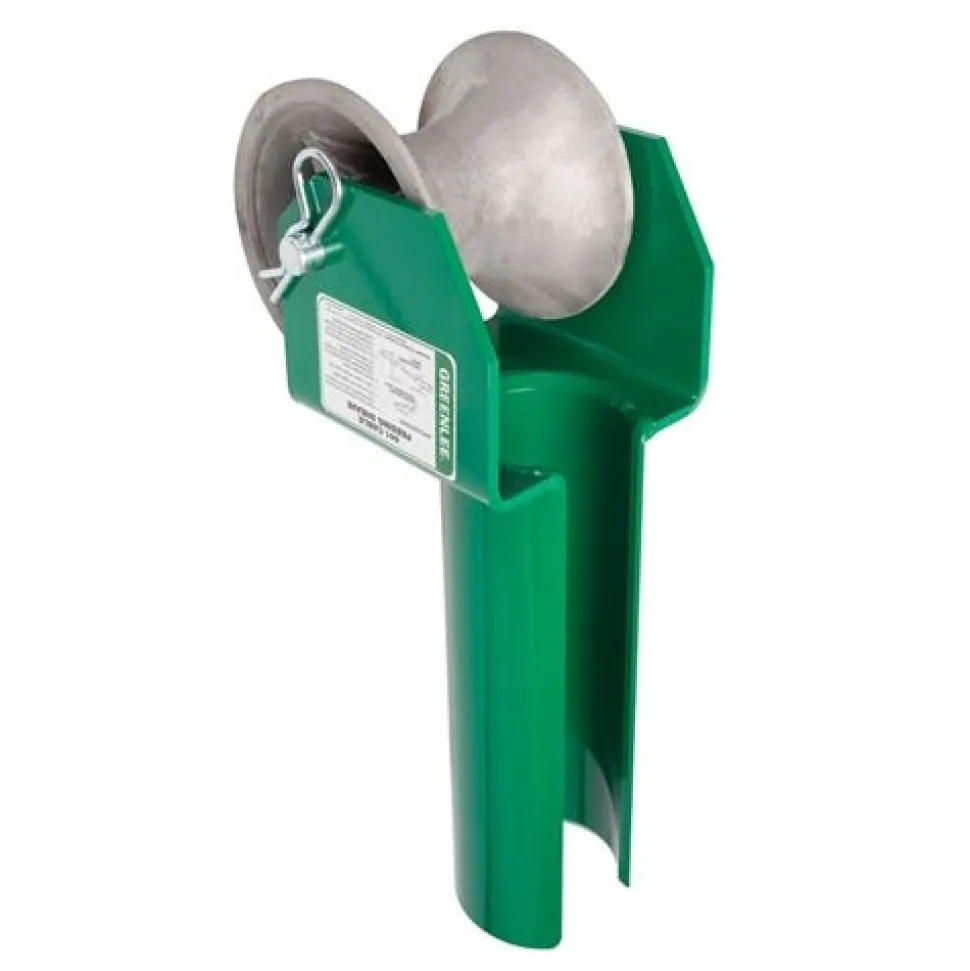

Greenlee Feeding Sheave 4″ Conduit 441-4

Name: Greenlee Feeding Sheave 4" Conduit 441-4
Brand: Greenlee
SKU: SKU3DWSANM6Co
Availability: InStock

$120.99

SKU: SKU3DWSANM6Co Categories: Accessories, Cable Pulling Sheaves & Rollers Tag: Greenlee Brand: Greenlee

Additional Details

Greenlee
Feeding Sheave for 4 Conduit 441-4
Yoke frame slides into the end of conduit and holds sheave; allowing the cable being fed into the conduit to smoothly roll over the sheave
5.000 IN (127.000 MM) wide aluminum alloy sheave with self-Lubricating bearings
Split tube for easy removal after cable is installed
Capacity : 6500.000 LB (28.900 KN) At 15DEG; 6500.000 LB (28.900 KN) At 30 DEG; 5200.000 LB (23.100KN) At 45 DEG; 4200.000 LB (18.600 KN) At 60 DEG; 3650.000 LB (16.200 KN) At 75 DEG; 3500.000 LB (15.500 KN) At 90 DEG
Includes : 25160 UPC 25160 Sheave Pin; 50302 UPC 50302 Sheave Pin Clip(2); 15362 UPC 15362 Sheave
Weight : 19.000 LB (8.600 KG)

“

Manufacturer Specifications

Capacity	6500.000 LB (28.900 KN) At 15DEG, 6500.000 LB (28.900 KN) At 30 DEG, 5200.000 LB (23.100KN) At 45 DEG, 4200.000 LB (18.600 KN) At 60 DEG, 3650.000 LB (16.200 KN) At 75 DEG, 3500.000 LB (15.500 KN) At 90 DEG
Pitch Diameter	Between 3.00″ and 6.00″
Includes	25160 UPC 25160 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15362 UPC 15362 Sheave
Standard	4″ Cable Feeding Sheave
Type	Sheave Assembly
Material	4″ Cable Feeding Sheave
Included Components	25160 UPC 25160 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15362 UPC 15362 Sheave
Outside Diameter	6.00″
Keyway	None
Country of Origin	United States
