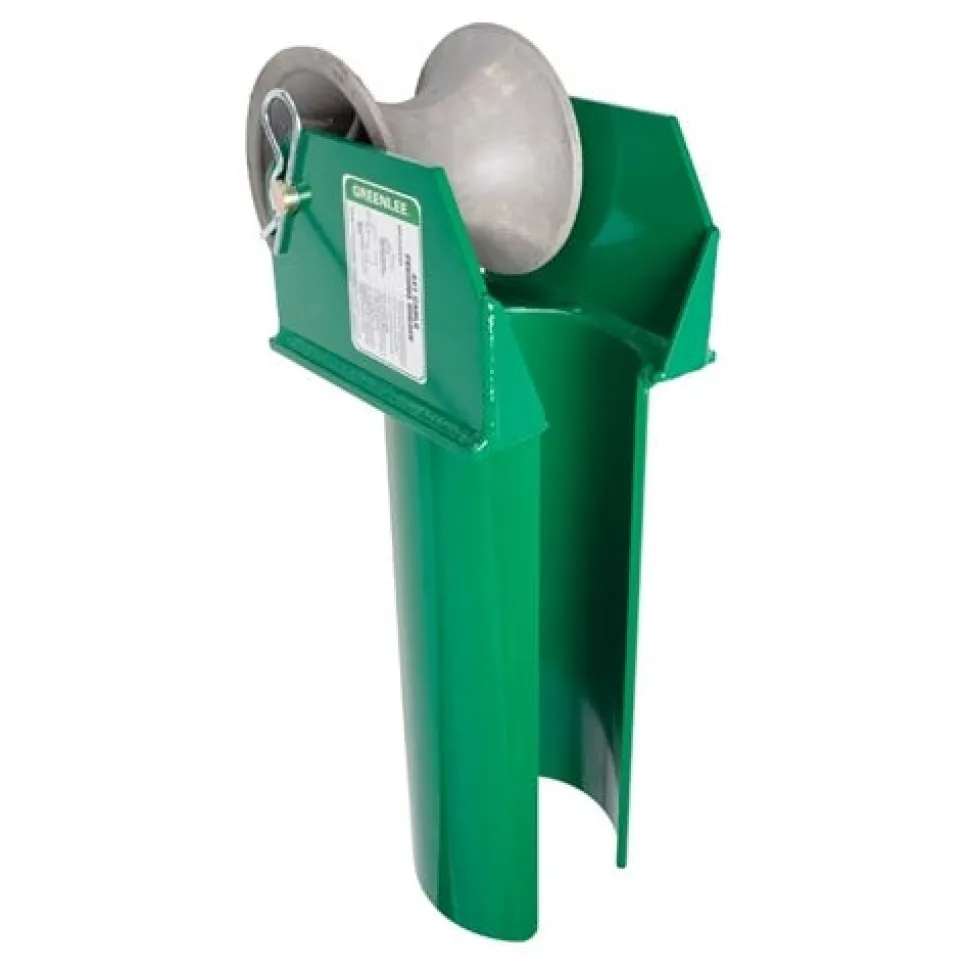

Greenlee Feeding Sheave 6″ Conduit 441-6

• Greenlee
• Feeding Sheave for 6 Conduit 441-6
• Yoke frame slides into the end of conduit and holds sheave; allowing the cable being fed into the conduit to smoothly roll over the sheave
• 5.000 IN (127.000 MM) wide aluminum alloy sheave with self-Lubricating bearings
• Split tube for easy removal after cable is installed
• Capacity : 6500.000 LB (28.900 KN) At 15DEG; 6500.000 LB (28.900 KN) At 30 DEG; 6500.000 LB (28.900KN) At 45 DEG; 6000.000 LB (26.600 KN) At 60 DEG; 5500.000 LB (24.400 KN) At 75 DEG; 5250.000 LB (23.300 KN) At 90 DEG
• Includes : 25160 UPC 25160 Sheave Pin; 50302 UPC 50302 Sheave Pin Clip(2); 15362 UPC 15362 Sheave
• Weight : 28.000 LB

“
