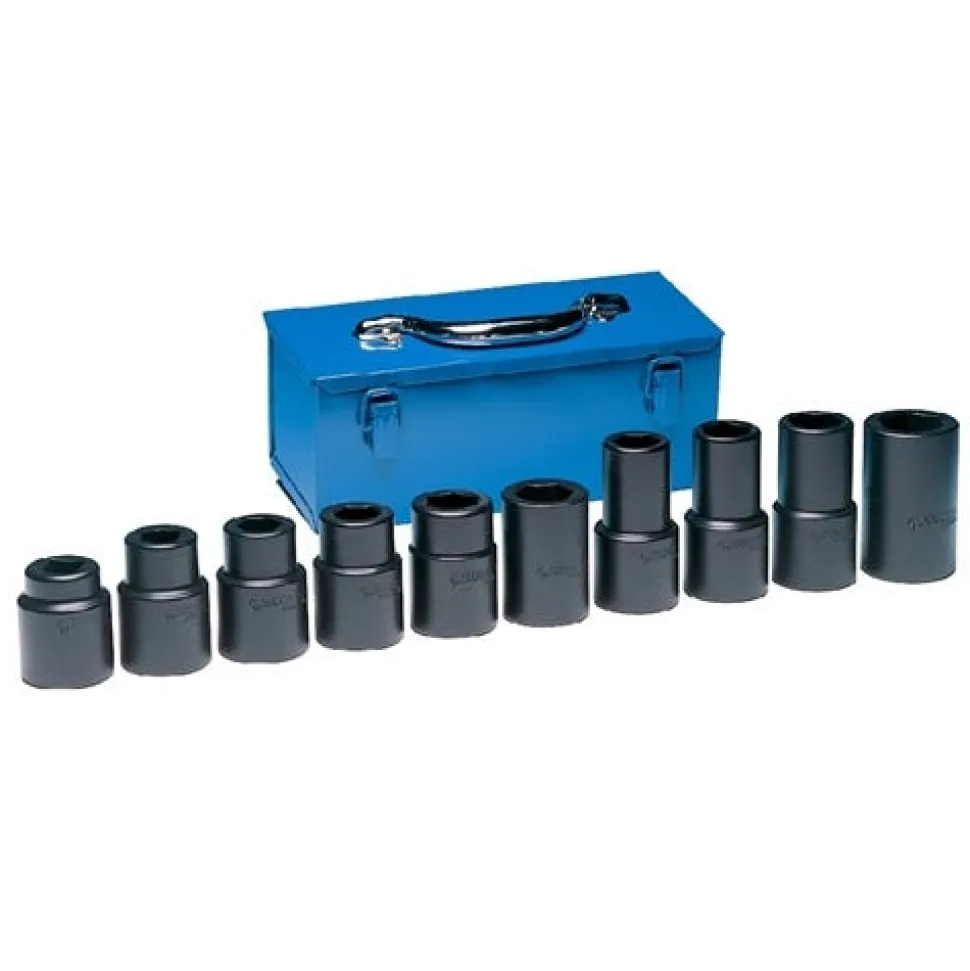

Grey Pneumatic 10 Piece #5 Spline Drive 6-Point Standard & Deep Length Impact Socket Set (SAE & Metric) 9260
Original price was: $525.00.$128.99Current price is: $128.99.
Grey Pneumatic
Grey Pneumatic 10 Piece #5 Spline Drive 6-Point Standard & Deep Length Impact Socket Set (SAE & Metric) 9260
Features
A special #5 spline drive set designed for servicing truck wheels. It contains a 13/16 square size for the budd wheel inner cap nuts; a 1-1/2″ outer budd nut size that has a incontrolled depthin hex end to help prevent contact with the wheel; a 33mm size for 10 hole hub piloted wheels; three (3) deep thin wall sizes; and other regular length impact sockets. 6 Point sizes: 7/8″; 15/16″; 1″; 1-3/16″ and 33mm std length; 1-1/16″; 1-1/8″ and 1-1/4″ thin wall deep; 1-1/2″ deep budd. 4 Point size includes: 13/16″ Square
Includes

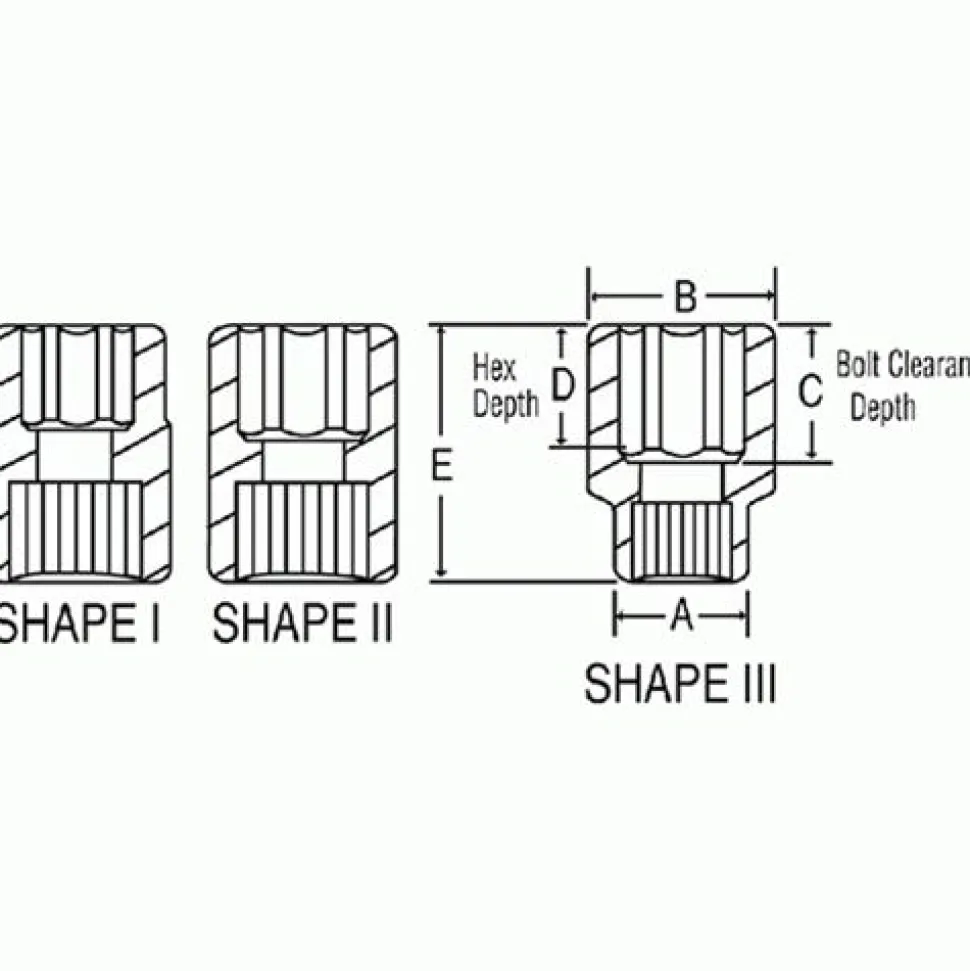

| Item# | Size | SHP | A | B | C | D | E |
|---|---|---|---|---|---|---|---|
| 5028R | 7/8″ | I | 2.17 | 1.73 | 1.97 | .94 | 3.15 |
| 5030R | 15/16″ | I | 2.17 | 1.73 | 1.97 | .94 | 3.15 |
| 5032R | 1″ | I | 2.17 | 1.81 | 1.97 | .94 | 3.15 |
| 5033M | 33mm | II | 55 | 55 | 50 | 24 | 80 |
| 5034DT | 1-1/16″ | 2.13 | 1.67 | 2.99 | .98 | 4.17 | |
| 5036DT | 1-1/8″ | 2.13 | 1.69 | 2.99 | .98 | 4.17 | |
| 5038R | 1-3/16″ | I | 2.17 | 2.01 | 1.97 | .94 | 3.15 |
| 5040DT | 1-1/4″ | 2.13 | 1.85 | 2.99 | .98 | 4.17 | |
| 5048DB | 1-1/2″ | 2.36 | 2.36 | 2.83 | .55 | 4.02 | |
| 5313S | 13/16″ | 2.17 | 1.73 | .94 | 2.68 |
“
| OPT SKU | GPN9260 |
|---|---|
| MPN | 9260 |
| UPC/GTIN | 838780000862 |
| Product Type | 1-1/2″ and Larger Impact Sockets |
| Google Category | Hardware > Tool Accessories > Tool Sockets |
| Anvil | Spline |
| Package | Kit/Set |
| Shipping Weight | 22.00 |
