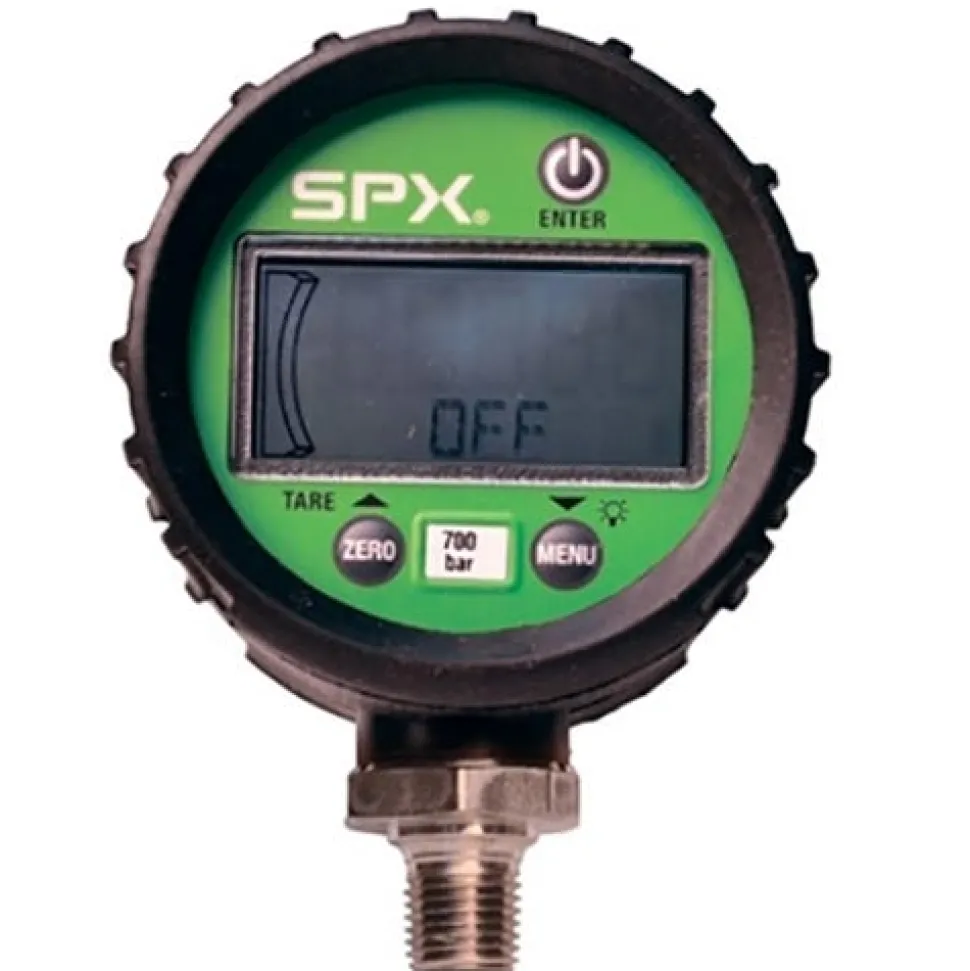

Power Team 10,000 PSI Digital Pressure Gauge 9042DG

Power Team

Gauges Digital 9042DG

The SPX FLOW 9042DG general purpose digital gauge is easier to read and offers better accuracy* than a conventional analog gauge. The laser-welded stainless steel sensor & socket; and the IP67 weatherproof rating make this product suitable for use in even the most demanding of applications. Five pre-programmed engineering units allow technicians to read pressure in the unit of measure most applicable to the process. The gauge also features a bar graph display to help understand how quickly the pressure is changing. The 9042DG comes standard with many useful functions; including automatic off (battery conservation); pressure tare; minimum pressure memory and maximum pressure memory. The gauges are calibrated for life at the factory. (They can be certified in the field if required)

FEATURES:

• Backlight and large 0.48 in. (12.2 mm) tall numbers for easy reading
• Weatherproof IP67 enclosure
• Protective rubber boot
• Displays in multiple engineering units: psi; bar; mPa; kPa; inHg; cmHg; mmHg; kg/cm2; ft H20
• Typical Cycle Life: 10;000;000 cycles
• Long 2;000-hour life with two standard AA (LR6) batteries
• Vibration & Shock tested to MIL-STD-202G
• Agency Compliance/Approval: RoHS; CE; ASME B40.7; UL; cUL 61010-1
• * Accuracy is 0.5% Full Scale; including the effects of linearity; hysteresis; and repeatability.
