RIDGID STRUTSLAYR Strut Shear Head Die 1-5/8″ Kit 64058

Name: RIDGID STRUTSLAYR Strut Shear Head Die 1-5/8" Kit 64058
Brand: RIDGID Tools
SKU: SKUVxs6PzqHR1
Availability: InStock

$138.99

SKU: SKUVxs6PzqHR1 Categories: Accessories, Press Heads & Attachments Tag: RIDGID Tools Brand: RIDGID Tools

Additional Details

RIDGID

STRUTSLAYR KIT; HEAD+CASE+1-5/8 DIE? 64058

FEATURES:

Fab Shop Quality
Burr-free* cuts eliminate the need for extra filing
Increased Efficiency
Clean; consistent cuts in 5 seconds or less
Safe Operation
Minimal sparking verses grinders and chop saws
Portable
Easy to move around the job site and mounts to RIDGID Tri-stands
Built-in Measuring Guide
Allows accuracy on the job site
Uses *Burr free with dedicated 1-5/8 x 1-5/8″ (41 mm x 41 mm) or 1-5/8″ x 13/16″ (41 mm x 21 mm) dies

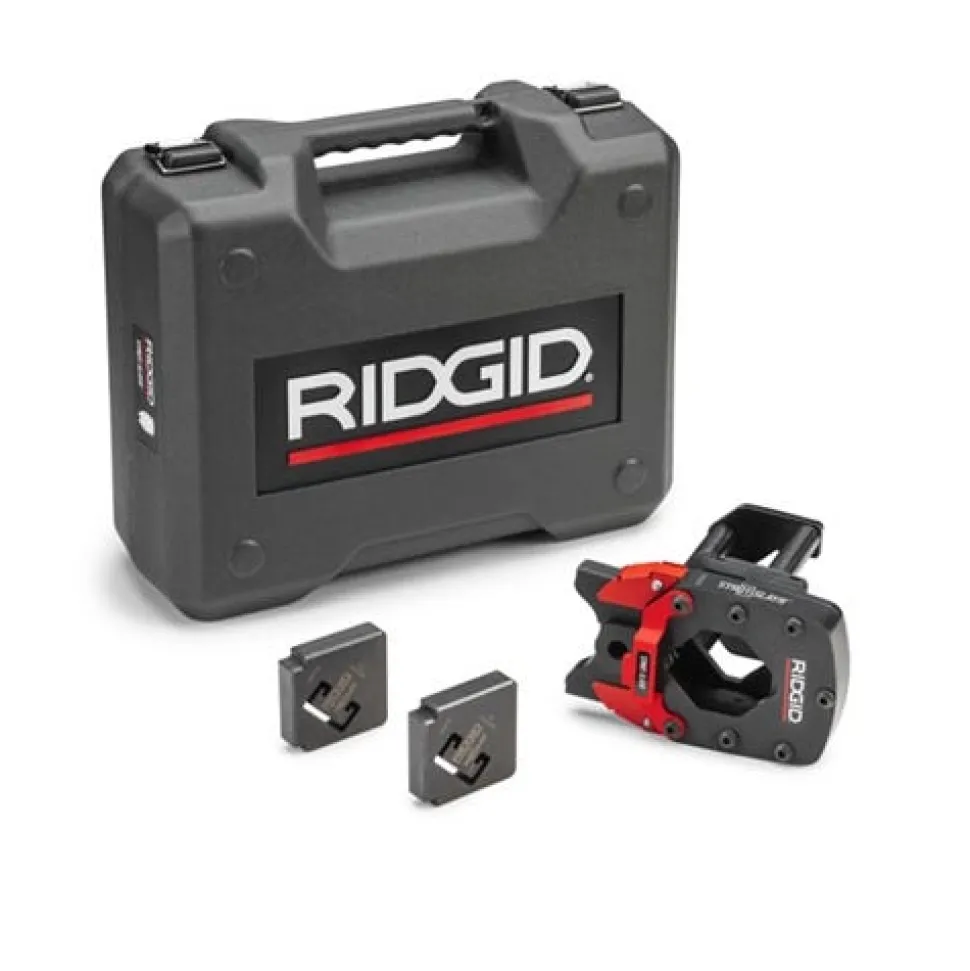

INCLUDES:

SPECIFICATIONS:

Cutting Capability	Up to 12 GA 1-5/8″ x 1-5/8″ (41 mm x 41 mm x 2.5 mm) or 1-5/8″ x 13/16″ (41 mm x 21 mm x 2.5 mm) strut channel to the MFMA-4 Standard. Not for use with stainless steel strut
Weight of Head	12 lbs. (5.4 kg) (including dies; not including press tool)
Press Tool Compatibility	RIDGID Standard Series 32 kN Press Tools (such as the RIDGID RP340 and RP330). Not for use with RIDGID 320-E and CT-400 Press Tools
Cut Squareness	+/- 2° (strut must extend past strut support)
Shearing Dies	1-5/8″ x 13/16″ (41 mm x 21 mm) Dedicated Die
1-5/8″x 1-5/8″ (41 mm x 41 mm)	Dedicated Die
1-5/8″ x 13/16″ (41 mm x 21 mm) and 1-5/8″ x 1-5/8″ (41 mm x 41 mm)	Combo Die
